Crash tests in X-ray vision

Crash tests in X-ray vision

© Fraunhofer EMI
Raytracing projection of an FE simulation.
© Fraunhofer EMI
Raytracing projection of a “virtual experiment”.

Up to now, the exact deformation processes taking place deep inside car structures during crash remained hidden. The dynamic processes can be reproduced approximatively in simulations. However, it has so far been very difficult to analyze them experimentally. Using the X-ray Car Crash (X-CC) technology, the possibility of observing the said dynamic behavior of hidden structures under crash loading is investigated at the crash center of Fraunhofer EMI. The enhanced validation and optimization of the predictive power of crash simulations is the overall objective of this project.

In this context, scientists of Fraunhofer EMI and of the Development Center X-ray Technology (EZRT, Fraunhofer IIS) are developing an integral measuring and evaluation method within the framework of the Fraunhofer-internal research project MAVO fastXcrash. The goals of the project range from the development of a high-energy panel detector module to the development of an extensive analysis software. Since this method has the potential to offer a valuable contribution to the process of automotive development, the research activities are supported both by EMI funds as well as interinstitutionally by the Fraunhofer Headquarters.

© Fraunhofer EMI

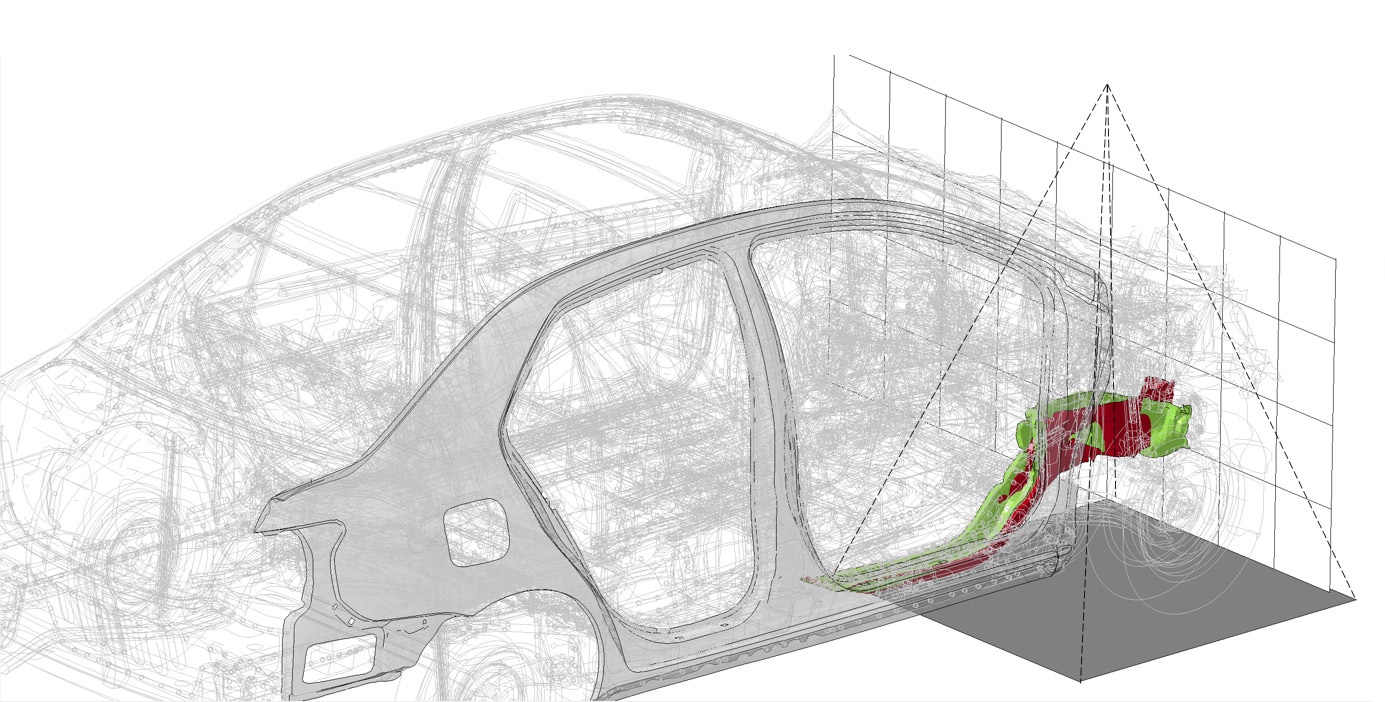

Visualization of an X-ray Car Crash test setup. A virtual experiment (red) and a reference simulation (green) are depicted.

The crash simulations and the raytracing projections shown in the figures are based on the 2010 Toyota Yaris Finite Element Model, Center for Collision Safety and Analysis at the George Mason University, Federal Highway Administration.

https://www.ccsa.gmu.edu/models/2010-toyota-yaris/


Die dargestellten Crashsimulationen sowie die Raytracing-Projektionen basieren auf:
2010 Toyota Yaris Finite Element Model: Center for Collision Safety and Analysis at the George Mason University; Federal Highway Administration
https://www.ccsa.gmu.edu/models/2010-toyota-yaris/
